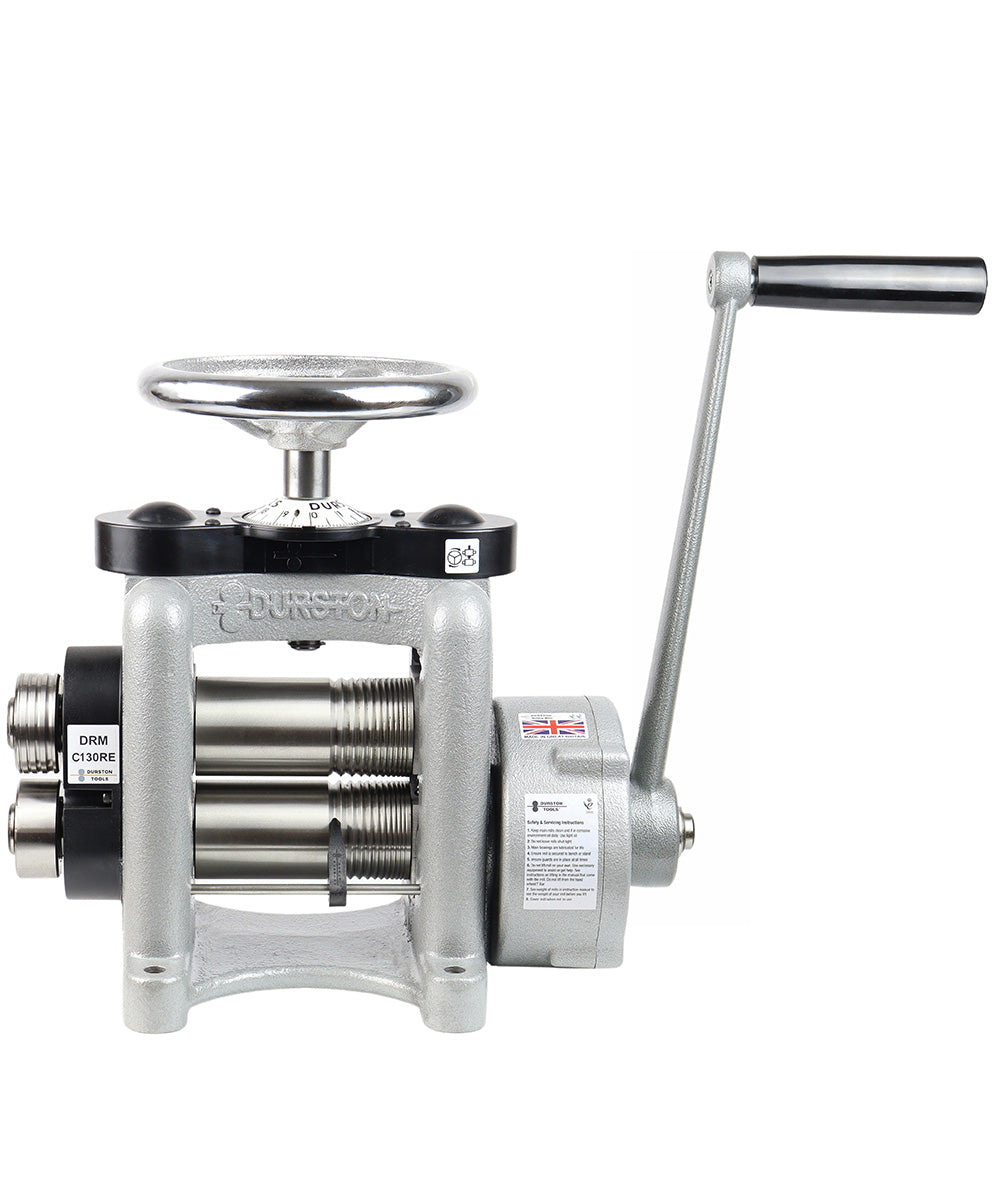

Durston DRM C130RE Rolling Mill

DRM C130RE Wire Rolling Mill Features & Benefits

• ‘C130’ Combination Rolling Mill
• ‘R’ 5-to-1 Reduction Gearbox
• ‘E’ Side Extension with 4 Half Round Grooves (4 to 1.5mm)
• 11 Square Wire Rolling Grooves (Main Roll)
• Roll Diameter 60mm
• Roll Width 130mm ( 75mm / 55mm)

The Durston DRM C130RE Rolling Mill features our 5-to-1 Self Lubricating Gearbox giving maximum efficiency when rolling flat materials up to 6mm or wire up to 8mm, the 130mm Precision Hardened Rolls have 11 Square Rolling Grooves ranging from 8mm to 1mm in size and a 75mm Flat Rolling area (total roll width 130mm)

The DRM C130RE also includes side extension rollers with 4 half round profiles, 4mm x 1.25mm, 3mm x 1mm, 2mm x 0.75mm, and 1.5mm x 0.5mm giving even more flexibility for professional Jewellery Makers.

Adjust this Rolling Mill with ease using the top mounted wheel, calibrated to give precise accuracy, as with all Durston Rolling Mills in the DRM Range, the body is solid cast iron giving ultimate strength, which combined with RC64 induction hardened rolls ensures a lifetime of rolling with professional results.

The DRM C130RE is a Combination Rolling Mill designed for flat metals, wire and and half round wire (using the side extension).
