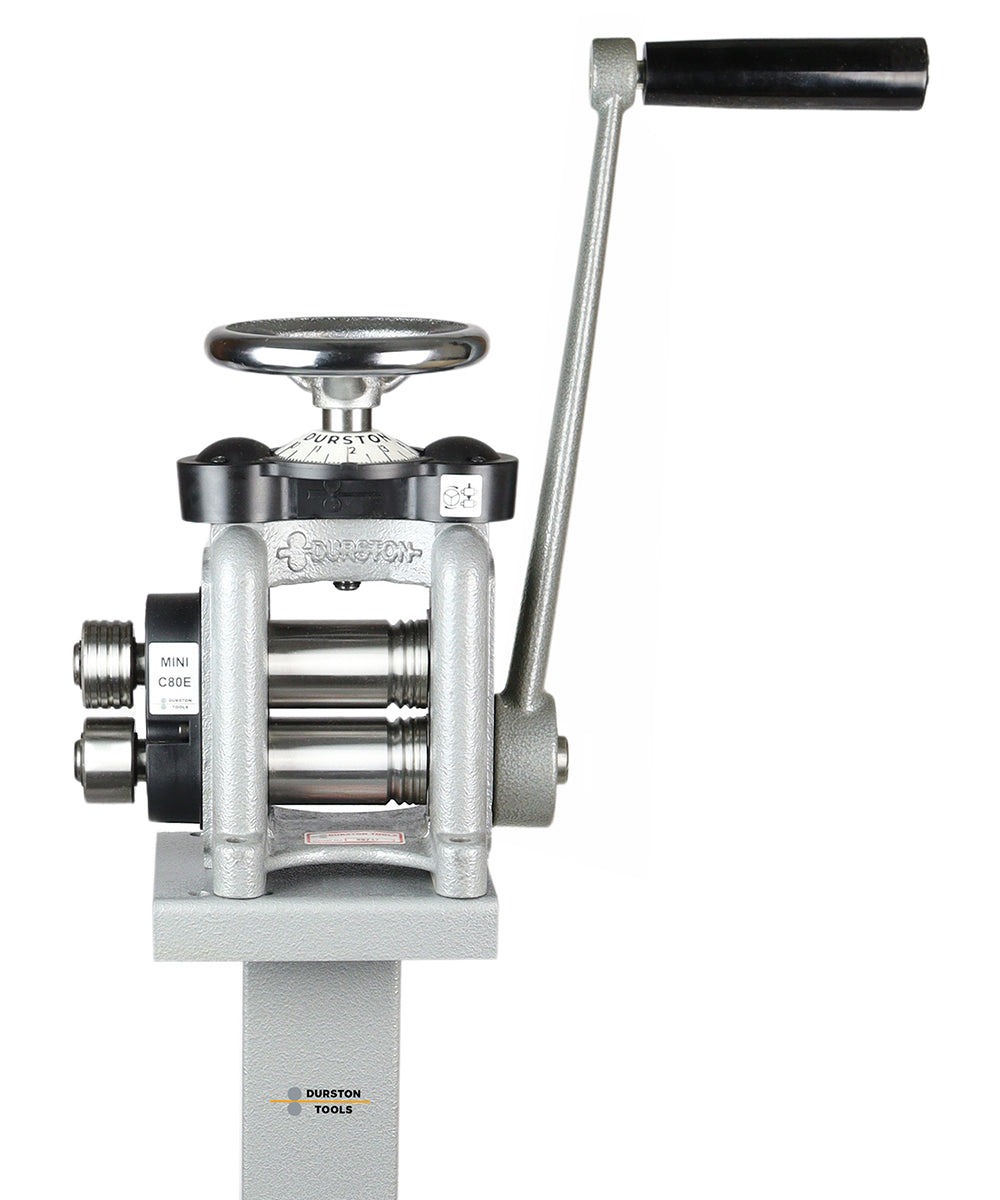

Durston Mini Rolling Mill C80E with Stand

Mini C80E Combination Rolling and Mini Mill Stand

• Includes Mini Stand (1068)
• ‘C80’ Combination Rolling Mill
• ‘E’ Side Extension with 4 Half Round Grooves (4-1.5mm)
• 4 Wire Rolling Grooves 7mm to 1mm
• Maximum Sheet Thickness of 5mm
• Maximum Wire Capacity 6.5mm
• Roll Diameter 45mm
• Roll Width 80mm (60mm / 20mm)
• Direct Drive

Mini Rolling Mill – Mini C80E rolling mill from Durston Tools. The Mini C80E rolling mill has side extensions and has been manufactured in a one-piece cast iron construction for optimal strength and rigidity. The side extension rollers come with four half rounds.

As the world’s foremost manufacturer of rolling mills, Durston’s mills are recognised globally for their reliability, incredibly robust construction and build quality. The Mini C80E rolling mill has side extensions and is no exception and has been manufactured in a one-piece cast iron construction for optimal strength and rigidity. It is compact but still with everything you need and has precision hardened and ground rolls to 64RC. It has maintenance-free bearings and has large, easy-to-read calibrated discs. The side extension rollers come with four half rounds. The C80E has four wire shaping rollers ranging from 6.5mm to 1mm. The width of the rollers is 80mm with a diameter of 45mm and can take metal sheets up to 5mm thick. The mill also benefits from four side extension half rounds of 4, 3, 2 & 1.5 mm. The entry-level C80E rolling mill from Durston: part of the award-winning Durston product range since 1961.
